Outdoor Cat 5/5e POE
Data Line Surge Protector

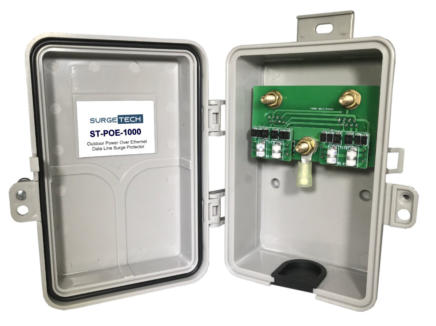

The ST-POE-1000 is an outdoor ethernet surge protector designed to protect sensitive data equipment connected to a
power over ethernet network from transient overvoltages. The surge protector is capable of data transmission speeds up to
1000 Mbp/s and is equipped with shielded RJ45 connectors. The dual surge protection circuit consists of high energy gas
tubes and sharp clamping silicon avalanche diodes to guarantee a fast response to incoming transients.
The ST-POE-1000 combination of efficiency, simplicity of installation, and superior surge protection makes it the clear choice
when protecting data line networks.
Prevents surge damage to POE systems
Powered Ethernet Security Networks
40,000 amps surge suppression (total)
1000 mbp/s data rate
Shielded RJ45 Connectors
Extra Large IP65 Case
Fully dust tight and complete protection against solid objects.
Tested to withstand water jets projected by a nozzle (6.3mm)
from any angle.
